Fits With: Putzmeister

Big Mouth S-Tube & 90MM Front Housing

Name: Big Mouth S-Tube &amp; 90MM Front Housing
SKU: 2393
Availability: InStock

CAD

Category: Schematics

Cross-Category: Putzmeister

From: $0.00

	Product	Quantity
	Wear Plate Metric Bolt Kit ADD TO CART Part №: WPMBK001 Item #1 $74.00 each	Wear Plate Metric Bolt Kit quantity

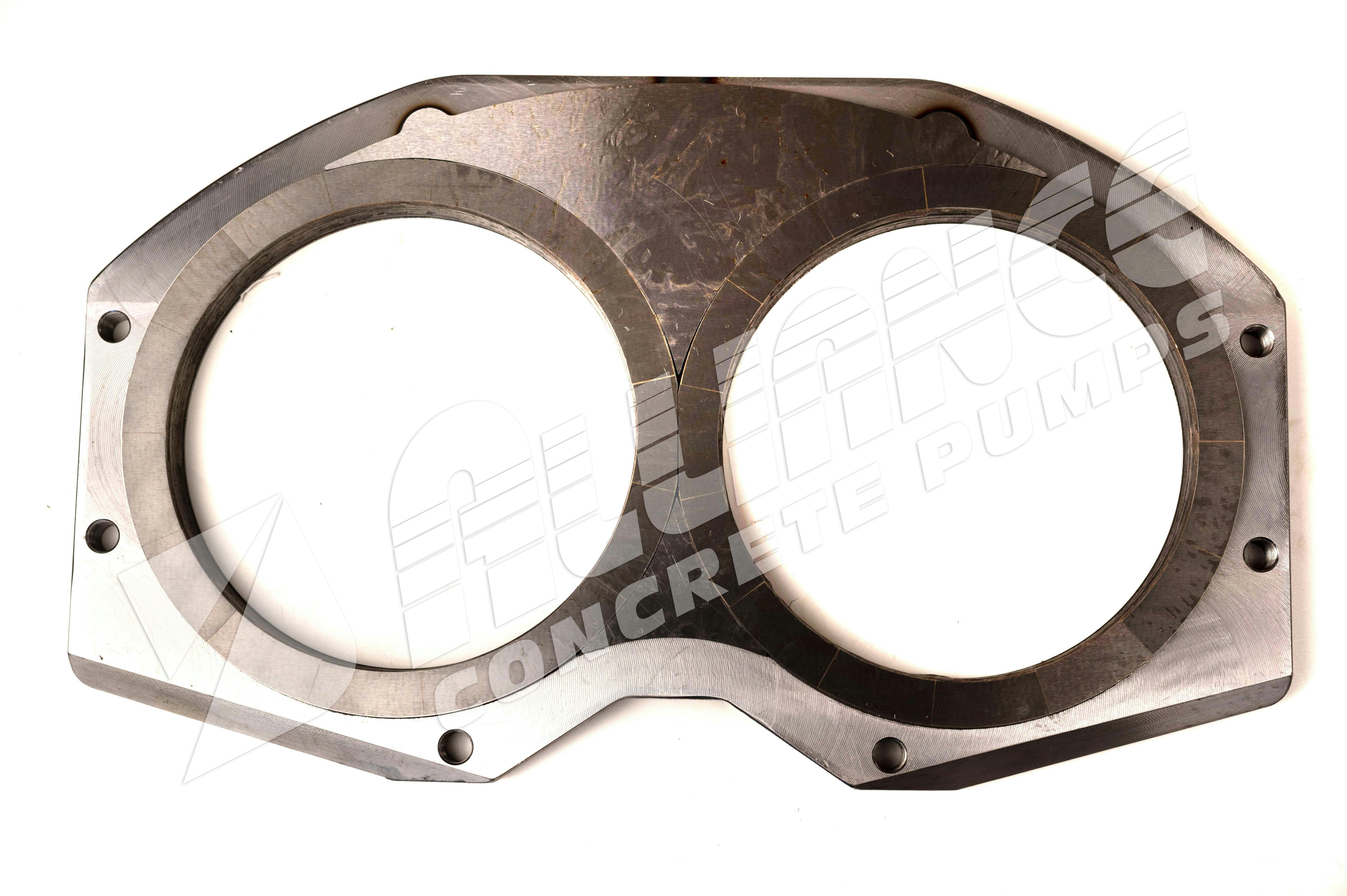

	Carbide Wear Plate, Big Mouth ADD TO CART Part №: PM532597 Item #2 $2,231.00 each	Carbide Wear Plate, Big Mouth quantity
	Non-Carbide Wear Plate, Big Mouth S-Tube (9" x 7") 90mm Spline ADD TO CART Part №: PM261122002 Item #2 Option $656.00 each	Non-Carbide Wear Plate, Big Mouth S-Tube (9" x 7") 90mm Spline quantity
	Non-Carbide Wear Plate, Big Mouth S-Tube (9" x 7") 90mm Spline (New Style) ADD TO CART Part №: PM519314 Item #2 Option $730.00 each	Non-Carbide Wear Plate, Big Mouth S-Tube (9" x 7") 90mm Spline (New Style) quantity
	Carbide Cutting Ring, Big Mouth ADD TO CART Part №: PM494520 Item #3 $893.00 each	Carbide Cutting Ring, Big Mouth quantity
	Non-Carbide Cutting Ring, Big Mouth S-Tube (9" x 7") 90mm Spline ADD TO CART Part №: PM261123001 Item #3 Option $236.00 each	Non-Carbide Cutting Ring, Big Mouth S-Tube (9" x 7") 90mm Spline quantity
	Thrust Ring, Big Mouth S-Tube (9" x 7") 90mm Spline ADD TO CART Part №: PM269520004 Item #4 $47.00 each	Thrust Ring, Big Mouth S-Tube (9" x 7") 90mm Spline quantity
	S-Tube Hex Nut ADD TO CART Part №: PM033718000 Item #5 $21.00 each	S-Tube Hex Nut quantity
	S-Tube Washer, Standard S-Tube (8" x 7") 80mm Spline ADD TO CART Part №: J01241000 Item #6 $26.00 each	S-Tube Washer, Standard S-Tube (8" x 7") 80mm Spline quantity

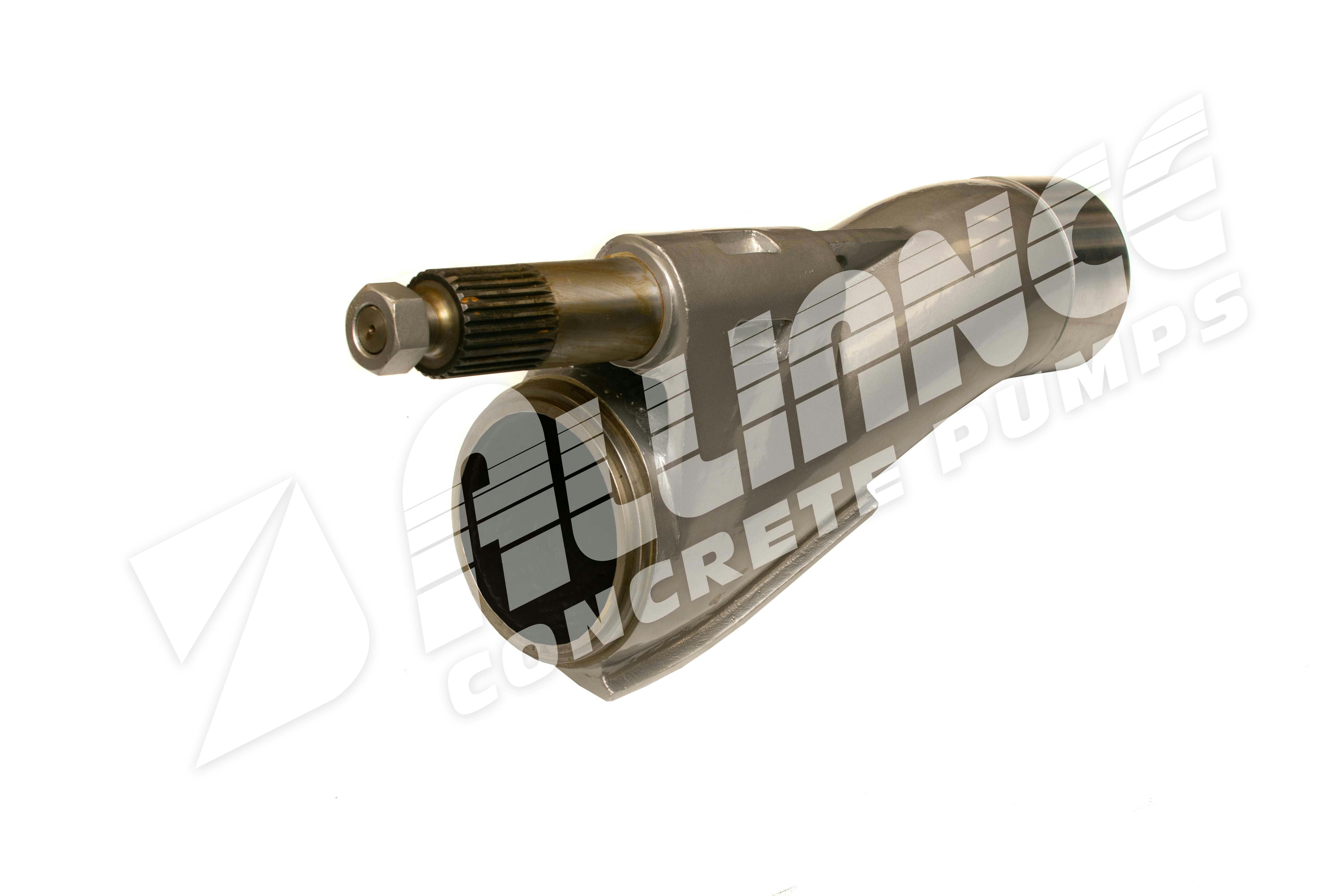

	S-Tube, Big Mouth S-Tube (9" x 7") 90mm Spline ADD TO CART Part №: PM434023 Item #7 $1,785.00 each	S-Tube, Big Mouth S-Tube (9" x 7") 90mm Spline quantity
	S-Tube, Big Mouth S-Tube (9" x 7") 90mm Spline, Hard Surfaced ADD TO CART Part №: PM434023H Item #7 Option $2,888.00 each	S-Tube, Big Mouth S-Tube (9" x 7") 90mm Spline, Hard Surfaced quantity
	S-Tube Chrome Sleeve ADD TO CART Part №: PM228383004 Item #8 $250.00 each	S-Tube Chrome Sleeve quantity
	Rear Housing Seal Kit ADD TO CART Part №: PM240391003SK Item #9 $104.00 each	Rear Housing Seal Kit quantity
	Rear Housing ADD TO CART Part №: PM240391003 Item #10 $425.00 each	Rear Housing quantity
	Seal Ring For Transition Door ADD TO CART Part №: PM240421009 Item #11 $22.00 each	Seal Ring For Transition Door quantity
	Rear Housing Metric Bolt Kit ADD TO CART Part №: RHMBK001 Item #12 $21.00 each	Rear Housing Metric Bolt Kit quantity
	Rear Housing Metric Fitting (Requires 3) ADD TO CART Part №: TLM0601N0 Item #13 $16.00 each	Rear Housing Metric Fitting (Requires 3) quantity
	Bearing Flange, Big Mouth S-Tube (9" x 7") 90mm Spline ADD TO CART Part №: PM274889002 Item #14 $210.00 each	Bearing Flange, Big Mouth S-Tube (9" x 7") 90mm Spline quantity
	Wear Sleeve, Spline Style, Big Mouth S-Tube (9" x 7") 90mm Spline ADD TO CART Part №: PM274884007 Item #15 $225.00 each	Wear Sleeve, Spline Style, Big Mouth S-Tube (9" x 7") 90mm Spline quantity

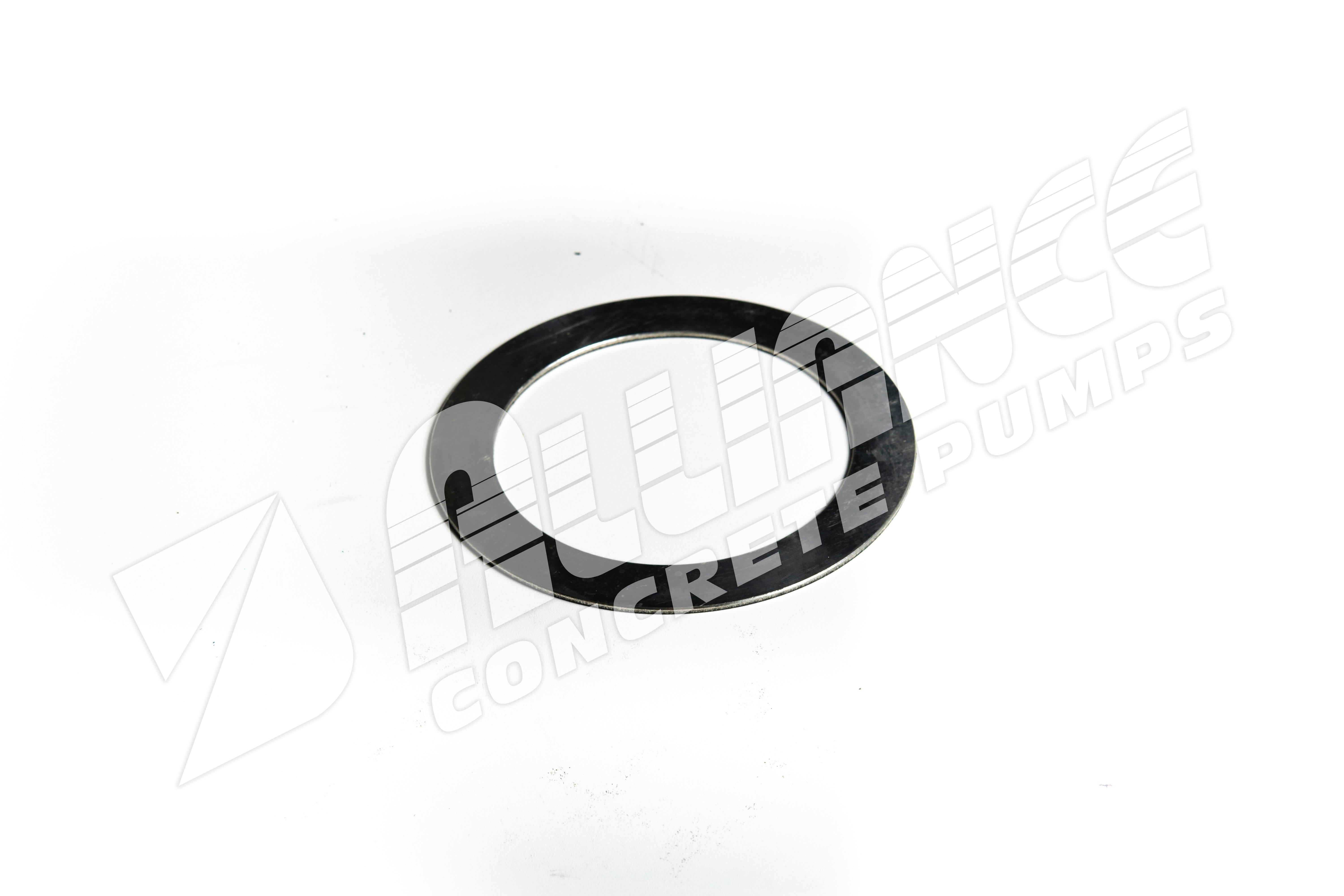

	Thrust Washer, Big Mouth S-Tube (9" x 7") 90mm Spline ADD TO CART Part №: PM427720 Item #16 $35.00 each	Thrust Washer, Big Mouth S-Tube (9" x 7") 90mm Spline quantity
	Small Seal Kit, Big Mouth S-Tube (9" x 7") 90mm Spline ADD TO CART Part №: PM274889002SK Item #17 $35.00 each	Small Seal Kit, Big Mouth S-Tube (9" x 7") 90mm Spline quantity
	Front Housing Metric Fitting & Grease Distribution ADD TO CART Part №: TCG0601N0 Item #19 $10.00 each	Front Housing Metric Fitting & Grease Distribution quantity
	Front Housing Metric Bolt Kit ADD TO CART Part №: FHMBK001 Item #20 $13.00 each	Front Housing Metric Bolt Kit quantity
