Fits With: Putzmeister

S-Tube & Small Housing TK Line Pump

Name: S-Tube &amp; Small Housing TK Line Pump
SKU: 7564
Availability: InStock

USD

CAD

Category: Schematics

Cross-Category: Putzmeister

From: $0.00

	Product	Quantity
	5" HD Outlet Flange ADD TO CART Part №: PM425087 Item #1 - TK70, TK60HP, TK50, TK40 $597.24 each	5" HD Outlet Flange quantity
	Bolt - HD Outlet ADD TO CART Part №: PM233743008 Item #2 - TK70, TK60HP, TK50, TK40 $23.76 each	Bolt - HD Outlet quantity
	Nut - HD Outlet ADD TO CART Part №: PM033720001 Item #3 - TK70, TK60HP, TK50, TK40 $3.24 each	Nut - HD Outlet quantity
	Wear Plate, TK ADD TO CART Part №: PM430406 Item #4 - TK60HP, TK50, TK40 $474.00 each	Wear Plate, TK quantity
	Wear Plate, TK70 ADD TO CART Part №: PM444384 Item #4 - TK70 $474.00 each	Wear Plate, TK70 quantity
	Cutting Ring, TK60, TK50, TK40 ADD TO CART Part №: PM430408 Item #5 - TK60HP, TK50, TK40 $143.00 each	Cutting Ring, TK60, TK50, TK40 quantity

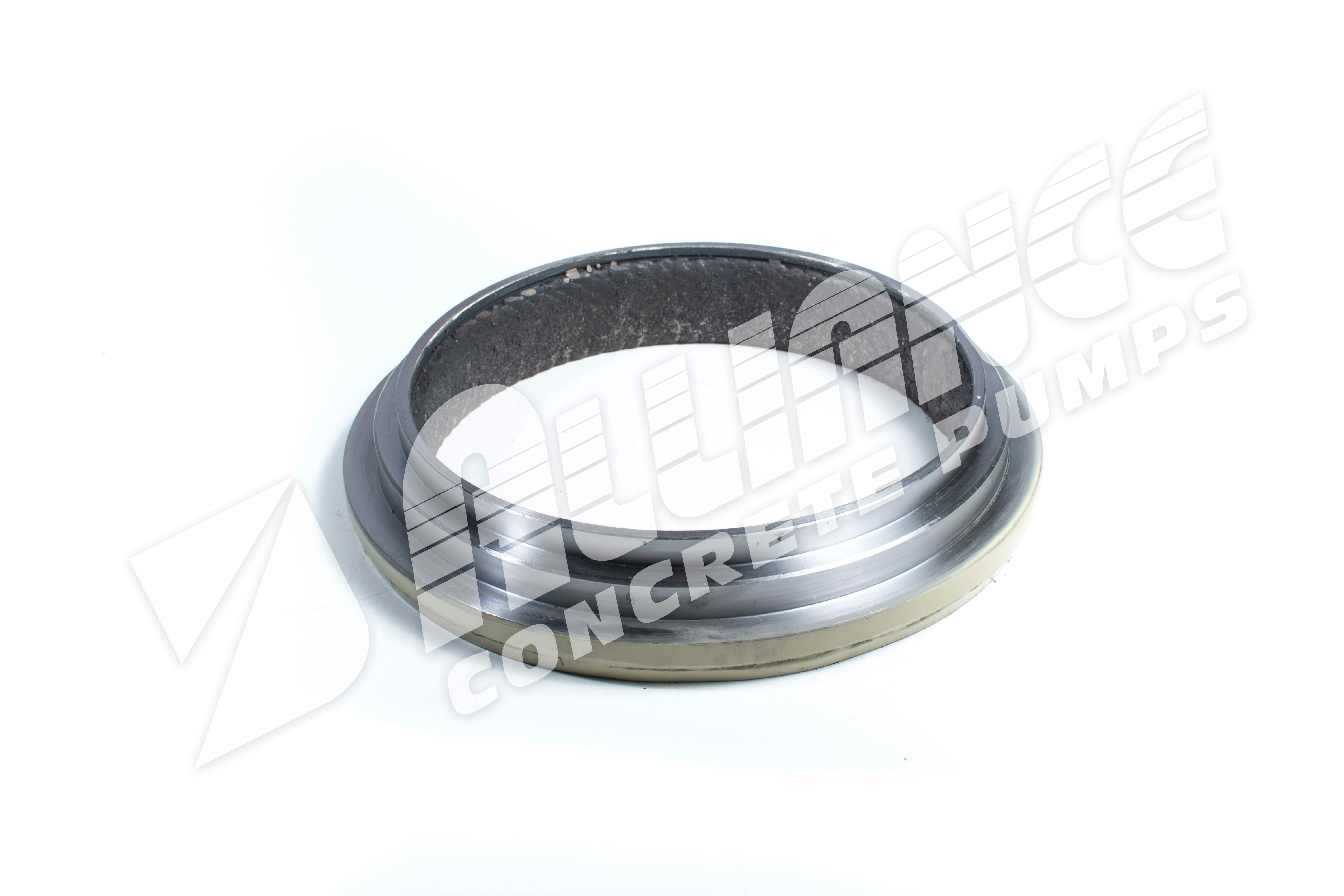

	Cutting Ring, TK70 ADD TO CART Part №: PM251231000 Item #5 - TK70 $148.00 each	Cutting Ring, TK70 quantity
	Thrust Ring, TK60, TK50, TK40 ADD TO CART Part №: PM430378 Item #6 - TK60HP, TK50, TK40 $32.00 each	Thrust Ring, TK60, TK50, TK40 quantity
	Thrust Ring, TK70 ADD TO CART Part №: PM249304004 Item #6 - TK70 $34.56 each	Thrust Ring, TK70 quantity
	Spacer Disc, TK ADD TO CART Part №: PM430379 Item #7 - TK60HP, TK50, TK40 $18.00 each	Spacer Disc, TK quantity
	S-Tube Hex Nut ADD TO CART Part №: PM033718000 Item #8 - TK70, TK60HP, TK50, TK40 $23.00 each	S-Tube Hex Nut quantity

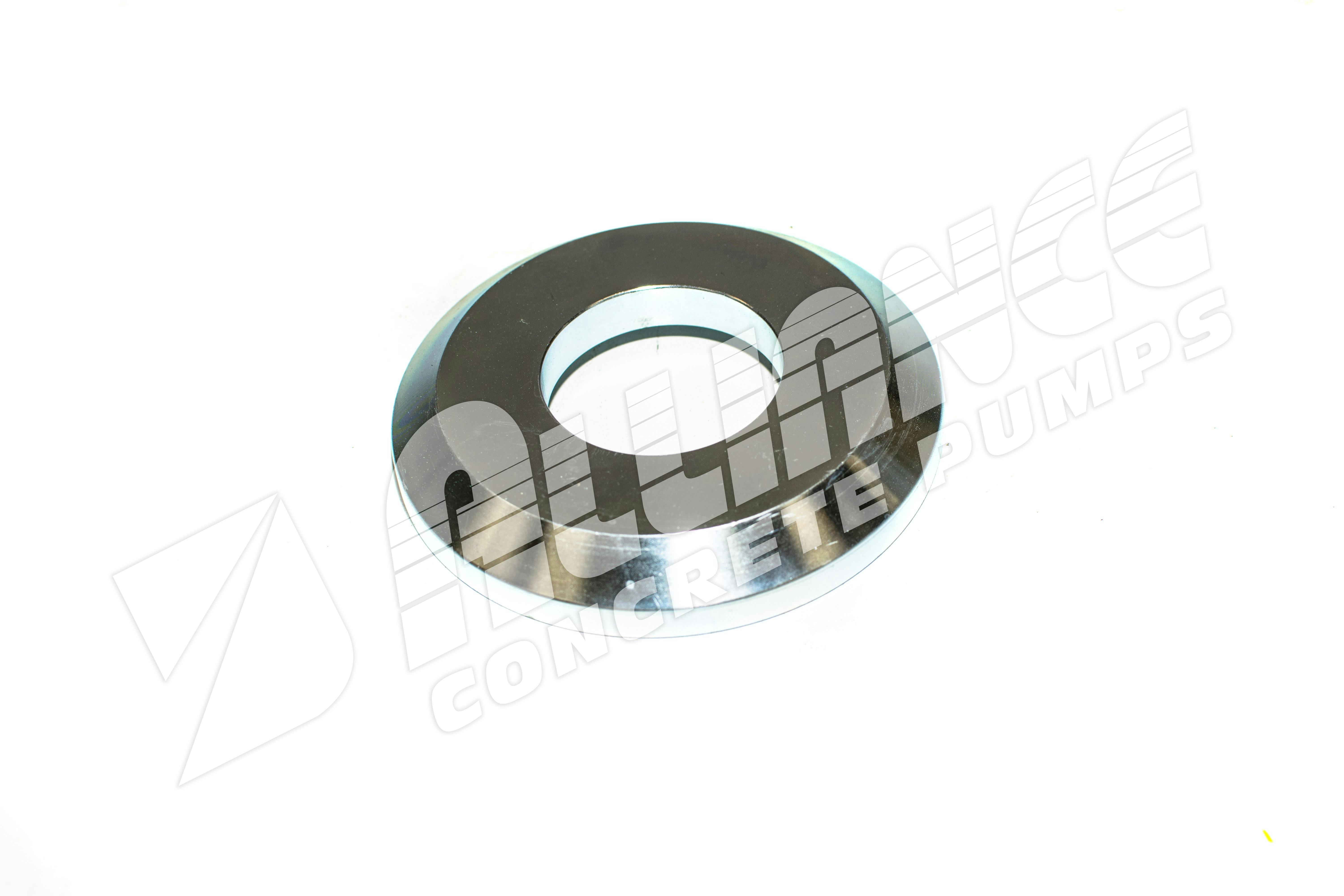

	Washer, TK ADD TO CART Part №: PM274873005 Item #9 - TK70, TK60HP, TK50, TK40 $14.00 each	Washer, TK quantity
	S-Tube 1512P, TK ADD TO CART Part №: PM430336 Item #10 - TK60HP, TK50, TK40 $3,053.00 each	S-Tube 1512P, TK quantity
	S-Tube 1812P, TK70 ADD TO CART Part №: PM410287 Item #10 - TK70 $2,211.00 each	S-Tube 1812P, TK70 quantity
	Chrome Sleeve, TK ADD TO CART Part №: PM261611005 Item #11 - TK70, TK60HP, TK50, TK40 $264.00 each	Chrome Sleeve, TK quantity
	Rear Housing Seal Kit, TK ADD TO CART Part №: PM410504SK Item #12 - TK70, TK60HP, TK50, TK40 $199.80 each	Rear Housing Seal Kit, TK quantity
	Rear Housing, TK ADD TO CART Part №: PM410504 Item #13 - TK70, TK60HP, TK50, TK40 $483.84 each	Rear Housing, TK quantity
	Bearing Flange ADD TO CART Part №: PM027783009 Item #14 - TK70, TK60HP, TK50, TK40 $137.16 each	Bearing Flange quantity
	Wear Sleeve-Groove Style ADD TO CART Part №: PM400494 Item #15 - TK70, TK60HP, TK50, TK40 $255.96 each	Wear Sleeve-Groove Style quantity

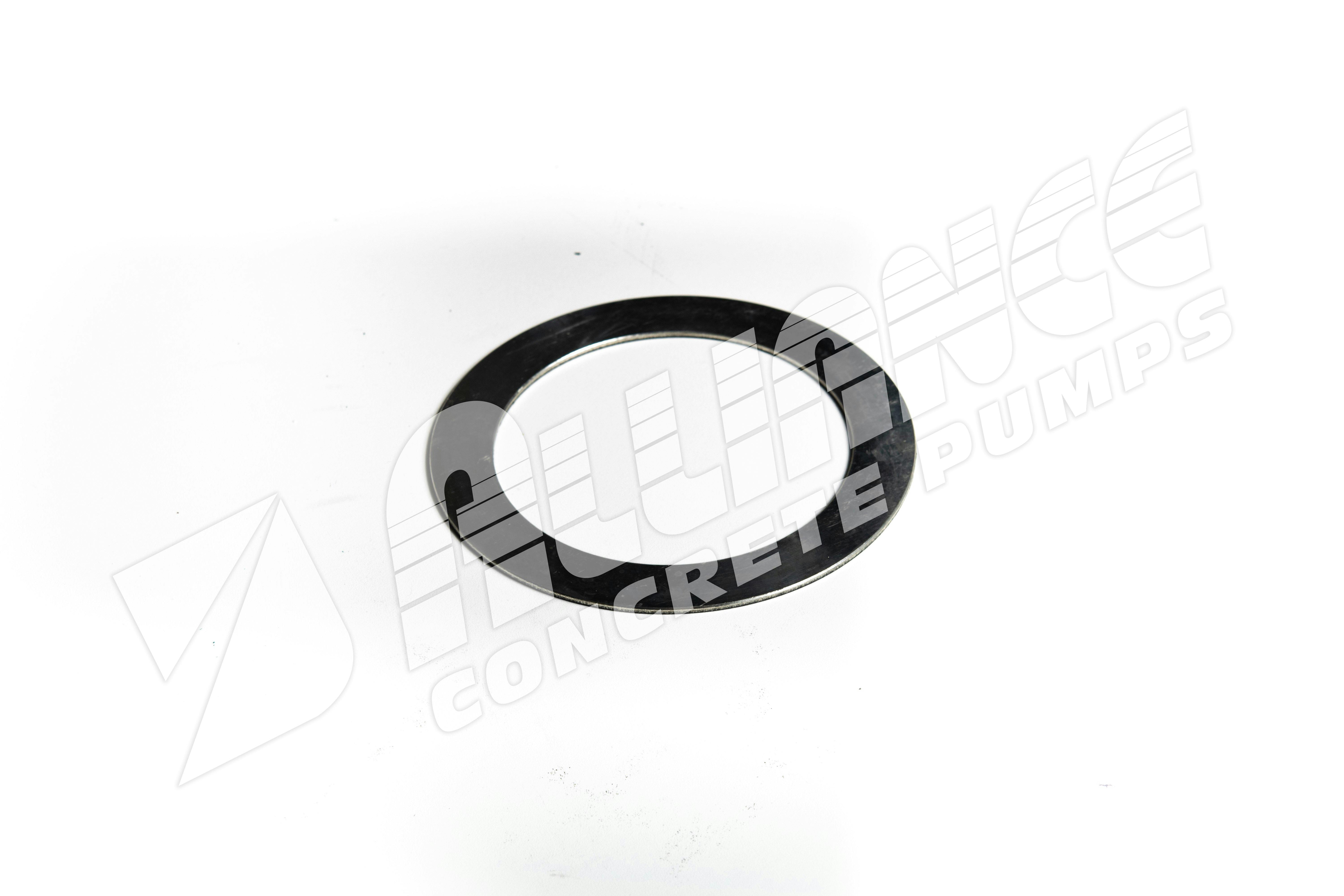

	Thrust Washer, TK ADD TO CART Part №: PM066586005 Item #16 - TK70, TK60HP, TK50, TK40 $34.56 each	Thrust Washer, TK quantity
	Small Seal Kit, Standard S-Tube (8" x 7") 80mm Spline ADD TO CART Part №: PM027783009SK Item #17 - TK70, TK60HP, TK50, TK40 $39.96 each	Small Seal Kit, Standard S-Tube (8" x 7") 80mm Spline quantity
	Bushing w/ Grease Groove, Standard S-Tube (8" x 7") 80mm Spline ADD TO CART Part №: PM028550008 Item #18 - TK70, TK60HP, TK50, TK40 $39.96 each	Bushing w/ Grease Groove, Standard S-Tube (8" x 7") 80mm Spline quantity
	Securing Ring ADD TO CART Part №: PM042174004 Item #19 - TK60HP, TK50, TK40 $7.56 each	Securing Ring quantity
