Fits With: Schwing

B-Rock Assembly 10″

Name: B-Rock Assembly 10"
SKU: 7500
Availability: InStock

CAD

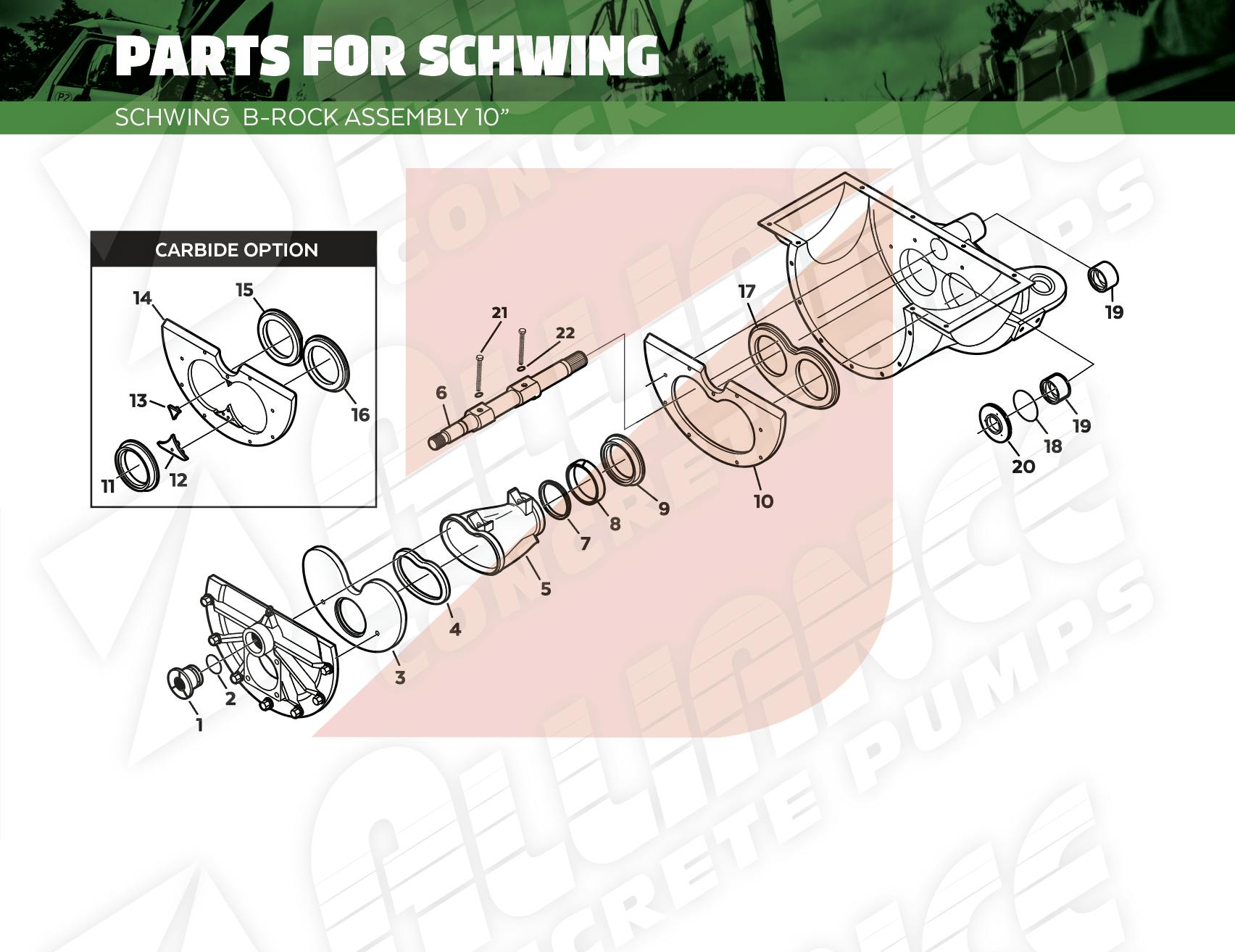

Category: Schematics

Cross-Category: Schwing

From: $0.00

	Product	Quantity
	Bearing Bushing Rear ADD TO CART Part №: SG10018047 Item #1 $147.00 each	Bearing Bushing Rear quantity
	O-Ring 70mm x 8mm ADD TO CART Part №: SG10017436 Item #2 $6.00 each	O-Ring 70mm x 8mm quantity
	Kidney Plate (180) ADD TO CART Part №: SG10018046 Item #3 $325.00 each	Kidney Plate (180) quantity
	Kidney Seal (180) ADD TO CART Part №: SG10029138 Item #4 $67.00 each	Kidney Seal (180) quantity
	B-Rock Valve DN 220/180 ADD TO CART Part №: SG10181912 Item #5 $1,999.00 each	B-Rock Valve DN 220/180 quantity
	B-Rock Shaft ADD TO CART Part №: SG10180090 Item #6 $1,600.00 each	B-Rock Shaft quantity
	Support Ring (220) ADD TO CART Part №: SG10181915 Item #7 $99.00 each	Support Ring (220) quantity
	Pressure Spring (220) ADD TO CART Part №: SG10181917 Item #8 $20.00 each	Pressure Spring (220) quantity
	Non-Carbide Cutting Ring (220) ADD TO CART Part №: SG10181916 Item #9 $189.00 each	Non-Carbide Cutting Ring (220) quantity

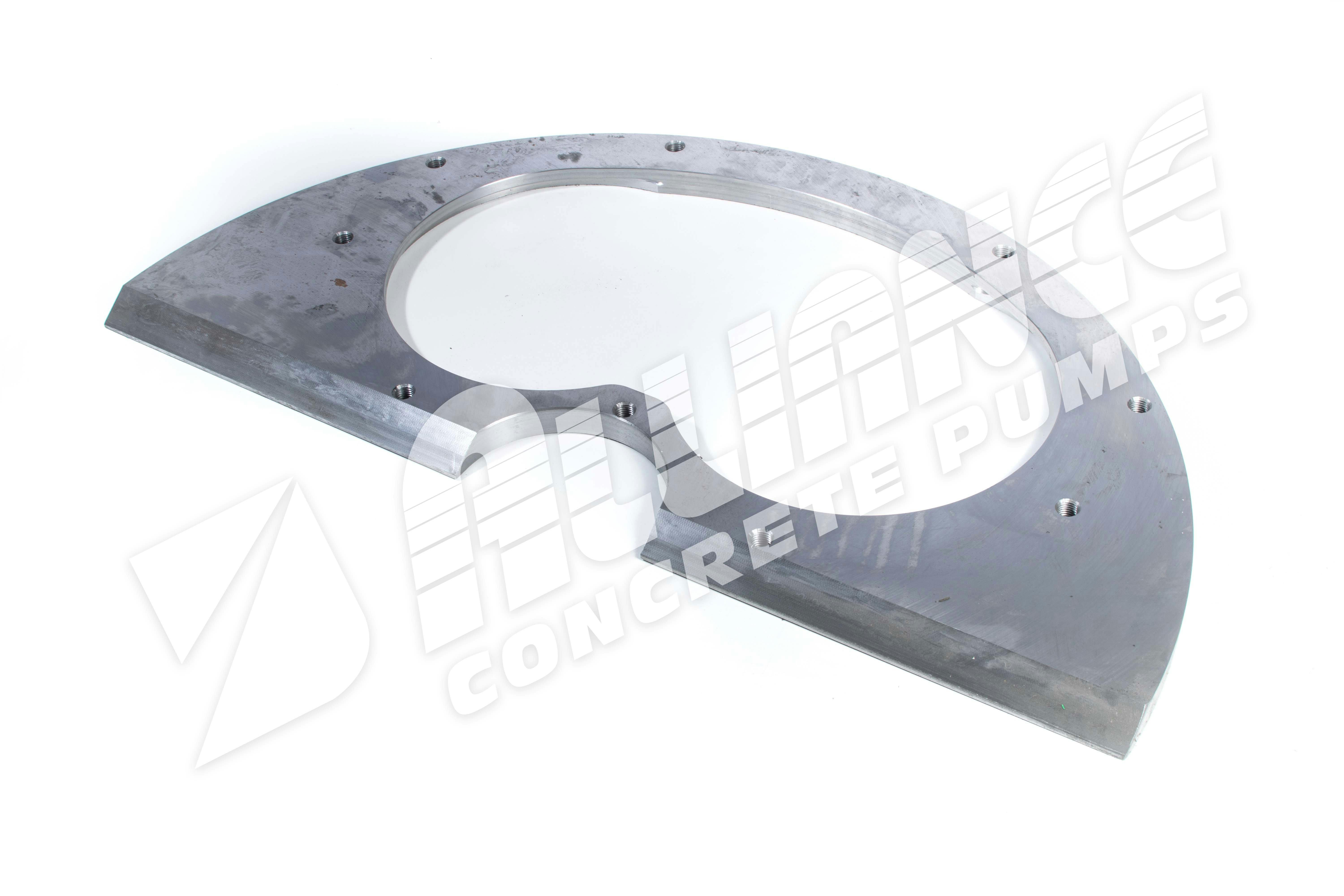

	Mounting Plate For 250 ADD TO CART Part №: SG10166657 Item #10 $575.00 each	Mounting Plate For 250 quantity
	Carbide Cutting Ring (220) ADD TO CART Part №: SG10182449 Item #11 $1,049.00 each	Carbide Cutting Ring (220) quantity
	Large Triangle Insert (Carbide) ADD TO CART Part №: SG10183640 Item #12 $415.00 each	Large Triangle Insert (Carbide) quantity
	Small Triangle Insert (Carbide) ADD TO CART Part №: SG10183641 Item #13 $220.00 each	Small Triangle Insert (Carbide) quantity

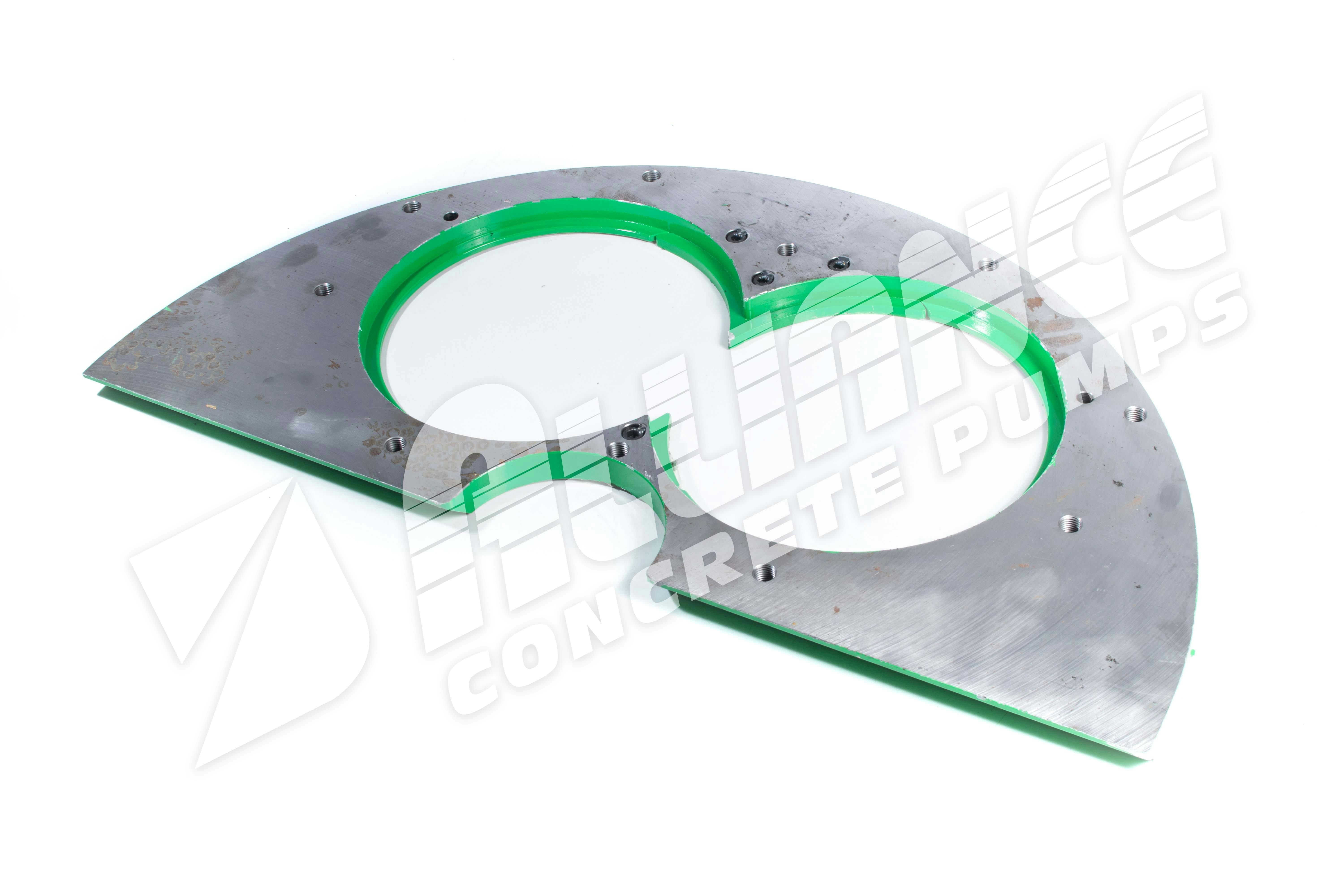

	Baseplate DN220 Carbide ADD TO CART Part №: SG10183638 Item #14 $1,300.00 each	Baseplate DN220 Carbide quantity
	Wear Insert 10" DN 220 (Carbide) Right ADD TO CART Part №: SG10190439 Item #15 $1,155.00 each	Wear Insert 10" DN 220 (Carbide) Right quantity
	Wear Insert 10" DN 220 (Carbide) Left ADD TO CART Part №: SG10183355 Item #16 $1,155.00 each	Wear Insert 10" DN 220 (Carbide) Left quantity
	Wear Plate (250) ADD TO CART Part №: SG10166658 Item #17 $499.00 each	Wear Plate (250) quantity
	O-Ring 95mm x 8mm ADD TO CART Part №: SG10016241 Item #18 $5.00 each	O-Ring 95mm x 8mm quantity
	Bearing Bushing Front ADD TO CART Part №: SG10018037 Item #19 $62.00 each	Bearing Bushing Front quantity
	Sealing Cover ADD TO CART Part №: SG10018035 Item #20 $147.00 each	Sealing Cover quantity
	M30 x 150 - 8.8 Bolt ADD TO CART Part №: SG10001295 Item #21 $16.00 each	M30 x 150 - 8.8 Bolt quantity
	M30 Disc ADD TO CART Part №: SG10015401 Item #22 $3.00 each	M30 Disc quantity
